Auto Repair Tool Kits VW/Audi (FSI) Gasoline Injector Removal & Installation Tool- Injector Puller and Seal Replacement Tool-R25

Specifications:

• Material: Steel
• Applicable: VW/Audi (FSI) Gasoline Injector
• Case Color: Blue
• Weight: 2.2 KG
• KIT: 17 PCS
• Case Size: 33x31x21CM

Product Features:

This product is designed for the removal, installation, and maintenance of gasoline injectors on Volkswagen vehicles.
It covers 1.4, 1.6, 1.8, 2.0, 2.7 V6, 3.0 V6, 3.2 V6,
3.6 V6, and 4.2 V8 FSI engines.

Technical Description

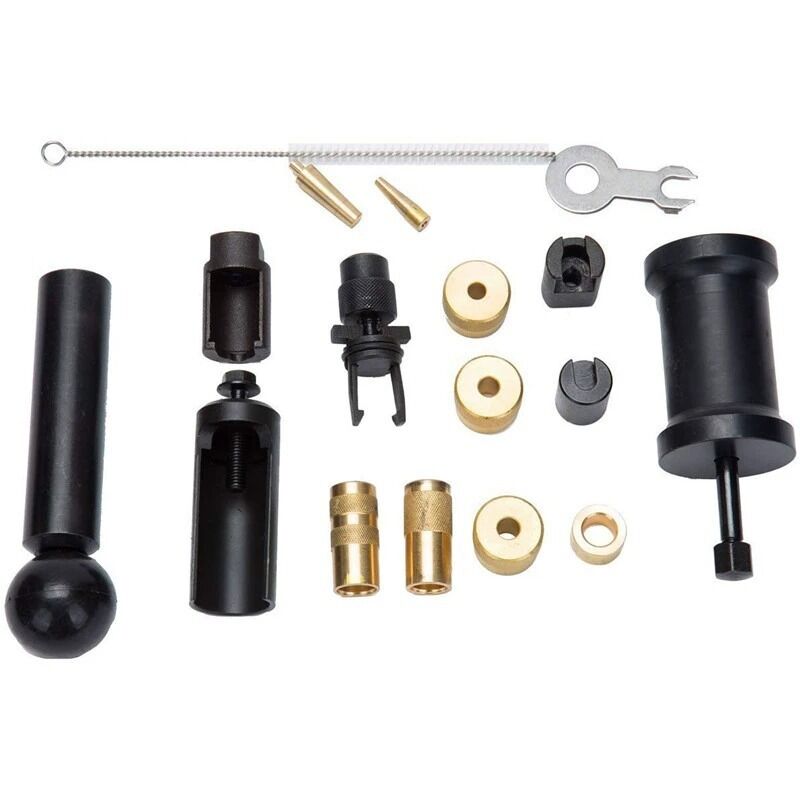

1.1 The FSi Injector Remover/Installer and Service Kit contains the specialized tools required to remove and install high-pressure fuel injectors on current FSi/TFSi engines found in Audi, SEAT, Skoda, and Volkswagen models.
1.2 Additionally, the kit includes specialized installation and calibration tools required for fitting new seals and support rings onto the injectors.
1.3 Depending on the specific design of the engine and injectors, the tools within the kit may be used in various combinations. These instructions serve only as a general guide for the use of the various tools; users should always consult the appropriate workshop manual for the specific engine being serviced—as well as perform a visual inspection of the injectors—to ensure the correct selection of tools from the kit, particularly regarding the replacement and installation of new seals.
